Pulp and Paper Plant

Enhanced client's wastewater process with a bioFAS™ MBBR retrofit, achieving a >75% reduction in BOD and ensuring compliance with effluent limits

project

bioFAS™ MBBR System for Recycled Paper Board Wastewater

industry

Pulp & Paper

application

Biochemical Oxygen Demand (BOD) Removal

Case study - Ox Paperboard - MBBR

Application Parameters

bioprocessH2O is equipped with a team of experts experienced in the wastewater industry. We provide solutions by offering innovative wastewater treatment systems that are custom built to each client’s needs and specifications. Allow bioprocessH2O to help you get the most out of your water with these recommended treatment systems.

Parameter
Influent
Effluent
Wastewater Flow
40,000 GPD
-
BOD
10,000 mg/L
< 250 mg/L
A air floatation system for water treatment.

The Problem

This paper company, located in West Virginia, needed to upgrade its wastewater treatment process because the BOD load produced by the paper mill exceeded the treatment capacity of the existing SBR.

The Solution

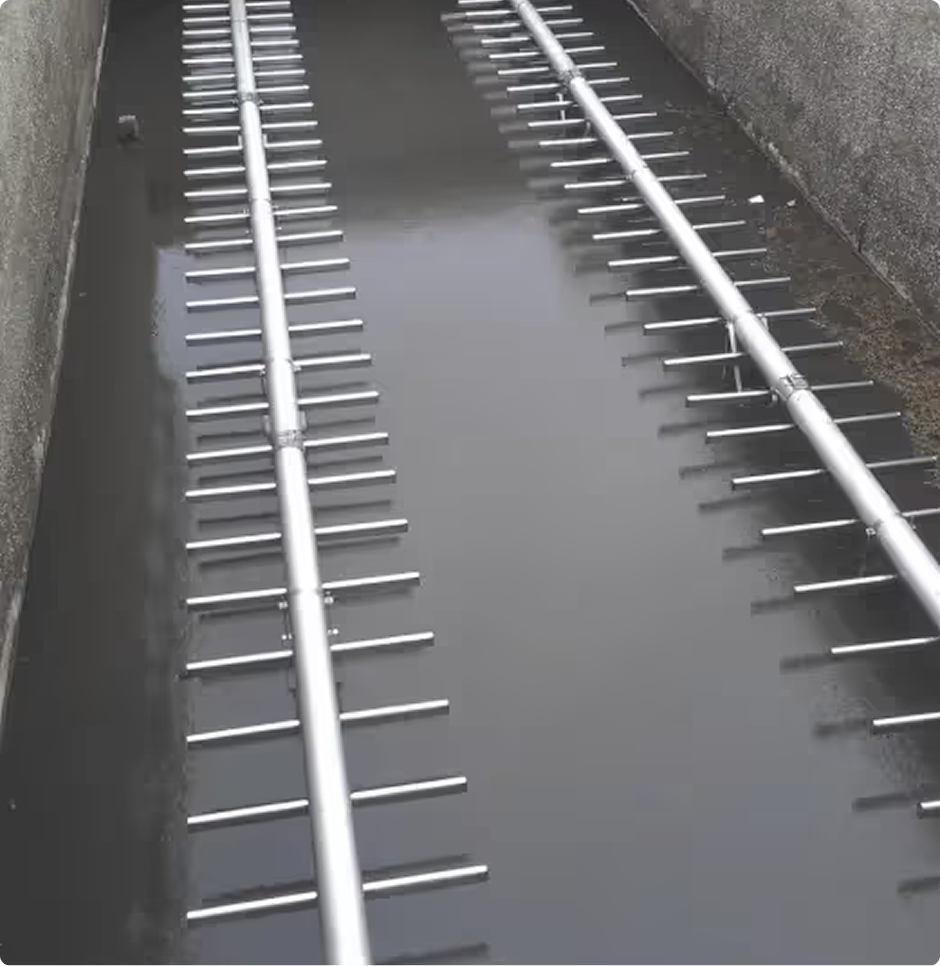

bioprocessH2O retrofitted an existing clarified water tank into a singlestage MBBR system to reduce the BOD load to the existing SBR. The treated wastewater from the bioFAS™ MBBR is discharged to the existing SBR for BOD polishing and solids removal to meet the effluent requirements.

The Results

The bioFAS™ MBBR System reduces carbonaceous BOD by >75%, allowing the existing SBR to meet the effluent BOD limit.

40000

GPD

>75%

of BODS removed

>2,518 lbs

per day of sBOD removed
